Adjustable Transmission Crossmember (4wd), 69-84 Blazer

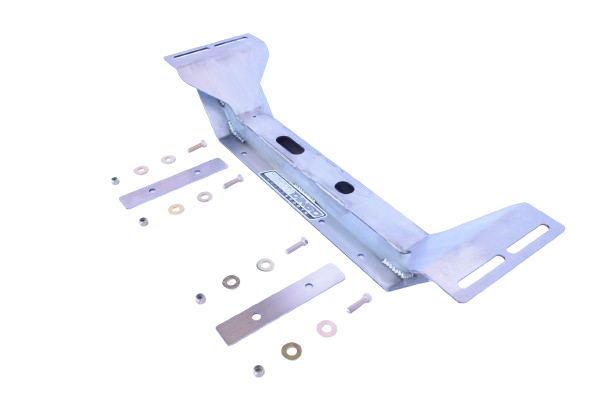

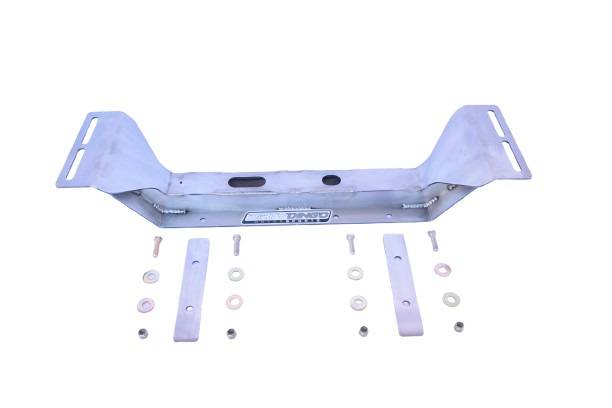

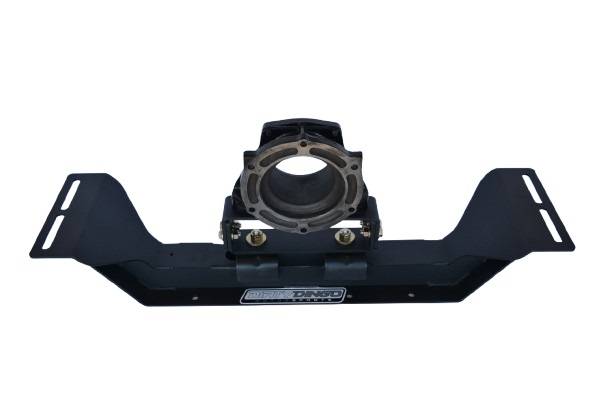

The adjustable 4X4 transmission cross member bolts into 1963-84 Chevy K5, K10, K20, K30 Square Body / GMC Trucks / SUV's and 88-91 Blazer's and Suburban's. Laser cut from 3/16 high carbon grade 70 steel plate steel and CNC folded. Designed to also replace W cross members and clear cardan joints. Completely boxed in heavy duty design and weighs 28 lbs without hardware. Welded and cooled in a fixture for precision fitment. Mounting holes are slotted for 3" of adjustment for forward and aft location. Designed to be used with 1967-1984 style transmission mounts. Includes 1/4 thick steel top frame support plate and 7/16" grade 8 hardware to bolt the cross member to your factory frame and 1/2" bolts to install the transmission mounts to the cross member. Shown with optional late model 4L60, 4L65, 4L70, 4L80, 6L80, 6L90- 8L90- 10L90 Silverado and 4 and 5 speed transmission mount adapter DD-LMTA.

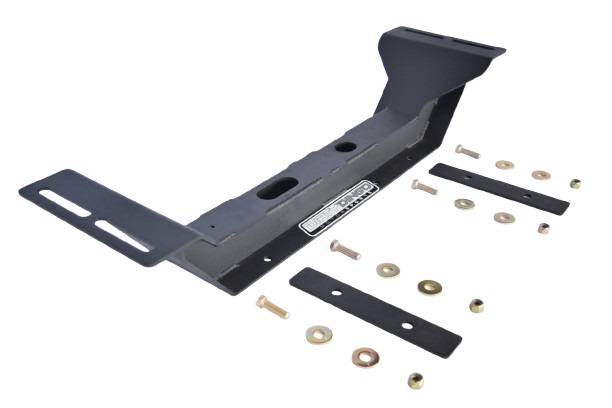

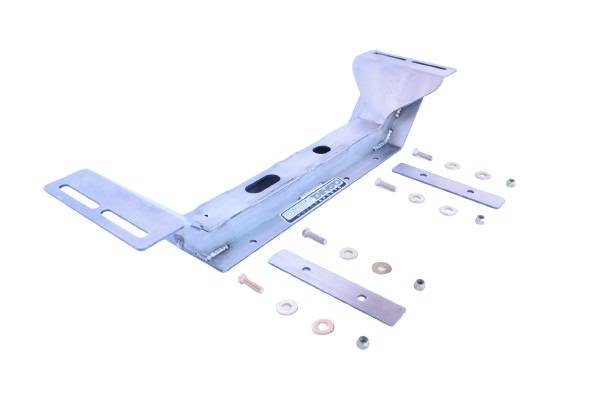

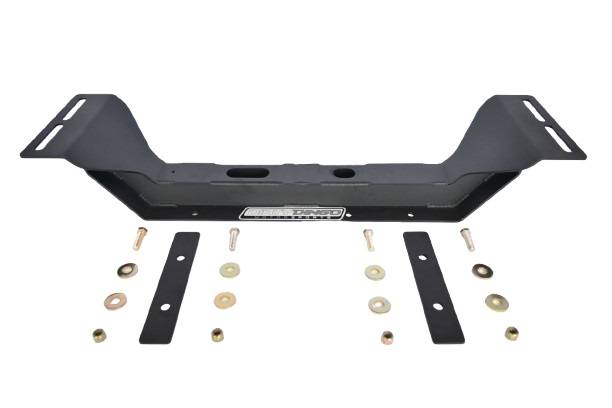

* Plain raw steel (Black Texture Powder Coat Available).

* Optional rubber transmission mounts.

* Optional Urethane transmission mounts.

* Optional Late Model Adjustable Transmission Adapter DD-LMTA.

* Early 1963-84 and Late 1985-91 use a different bolt kit for the transmission mount.
