E-Stopp Standard Park Brake Actuator Kit w/Button

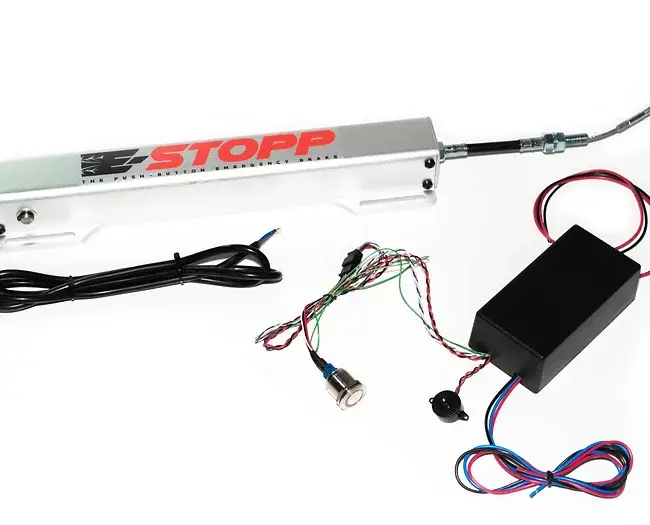

E-Stopp push-button electric emergency brakes are perfect for custom trucks, street rods, or any vehicle. They not only free up room on the chassis and in the interior, but double as an anti-theft device when the activation button is hidden. The E-Stopp units will work with any kind of braking system that can accept an emergency brake cable; and they mount anywhere there's room on the chassis. Kits include the actuator, the control box with lighted push-button switch, and wire connectors. E-Stopp push-button electric emergency brakes are controlled by a microcomputer that regulates the amount of pull--they will only pull up to 600 lbs. before they're locked down. The button has a detachable head for easy install and allows both visual and audible recognition. Also included is a patented ignition safety feature that renders the brake inoperable while the ignition is on. E-Stopp recently added another ground sync wire that can be hooked up to the parking symbol light on your dashboard. Again, this system can be used as a theft deterrent by hiding the e-brake button under the dash or in the glove compartment, or by installing a kill switch. Basically, if someone doesn't know how to unlock your rear end, they'll have a difficult time stealing your vehicle.

Tech Specs

Actuator:
21" Length Overall (including cable)
15" not including cable
2" Width (allow for approx. 3 1/4" of space when mounting")
1.8" Height
11" Brake Cable
Cable Threads 6mm x 1 pitch and 10mm x 1.5 pitch

​Control Box:​
4.9" Length
2.5" Width
1.9" Height

​Button:​
​22mm Billet Button w/ Red LED
