LS Conversion Crossmember, 4wd, 69-72 Blazer

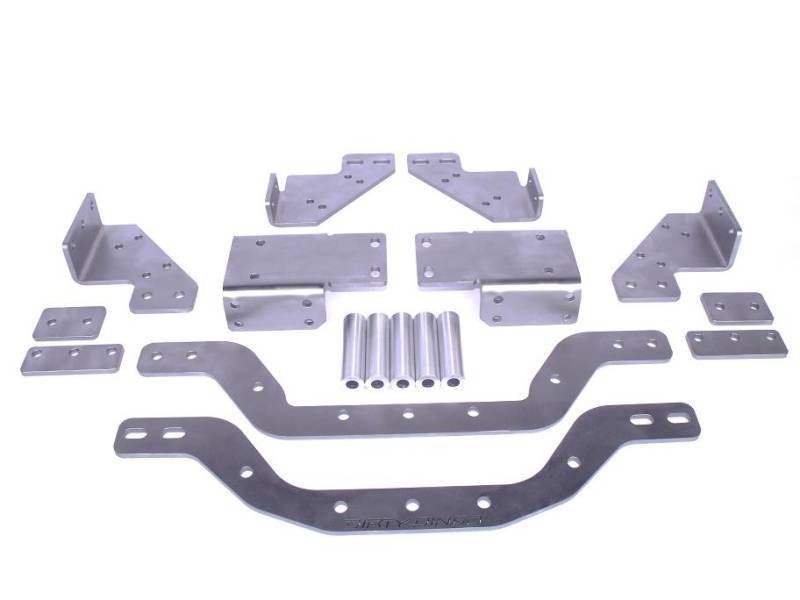

Innovative new design Dirty Dingo modular cross member for installing the LS Gen 3 and Gen 4 engines into 1967-72 Chevrolet and GMC 4X4 trucks and K5 Blazer's. This is a true "bolt in" design. Precision laser cut from 1/4 plate steel. Surface sanded on both sides and folded with a large radius on a CNC press brake. Easy to install with a hand drill and a 3/8 drill bit. Designed with hidden slotted adjustable plates to accommodate out of square or bent frame rails. Utilizes updated captured clam shell style frame mounts while retaining factory position of engine mounts. Center section easily unbolts and drops out for oil pan removal. Includes outer frame plates for added strength. Billet aluminum center spacers are machined from 6061-T6 aluminum. All hardware is grade 8 zinc coated with super 9 double thick washers. Select below to add factory rubber frame mounts, adjustable LS conversion mounts, and powder coat.

* Designed to be used with Dirty Dingo Truck LS 4X4 Mounts DD-2585-4.

* Free powder coat on mounts when choosing powder coat option and purchasing mounts together.

* Discounted DD-2585-4 adjustable LS conversion mounts when purchasing together.

* Does not require a lift kit or body lift kit to install.

* Designed to be used with GM Hot Rod or H3 Hummer truck oil pan. Vortec truck pan will fit with engine in the stock position. Sliding engine forward
will require using 1998-02 F car pan.

* Does not require installing a lift kit. Will work with stock 4X4 frame and body position.

* 63-72 4x4 requires a complete front crossmember kit. The stock crossmember is too narrow for any LS oil pan.

* Low mount A/C requires engine to be moved all the way forward and frame notching

* 2010-15 Camaro exhaust manifolds, or Schoenfeld headers

* If running Dirty Dingo low mount A/C, must use Double D's to clear compressor and may require a small notch on the top of frame rail
