6" Lift Kit, 3/4 Ton, 73-76 Blazer
C23
6" Lift Kit, 3/4 Ton, 73-76 Blazer
Pricing:
$627.23
Description
6" Lift Kit, 3/4 Ton, 73-76 Blazer. Zone Offroad now offers a 6" suspension lift kit for your 1973-76 3/4 ton Blazer, Jimmy or Chevy or GMC truck. Many hours of development and testing have finally produced a capable leaf spring that we are proud to introduce to the lineup. These springs are a 5 leaf pack with anti-friction pads and center leaf spacer plates between each leaf. This design significantly decreases leaf pack internal friction for a smooth and consistent spring rate.
This system comes complete with a 4" steering arm to correct the drag link angle. Zone Offroad also addresses the brake lines by providing front and rear brake line relocation brackets. Front and rear yellow zinc plated u-bolts with high nuts and washers are included. The rear of this system is lifted with a 4" lift block and ad-a-leaf to achieve 5-6" of rear lift. If your truck came with a front sway bar, Zone Offroad has you covered with a unique shackle sway bar link design listed in the kit options that will fit lifts from 2-6". Choose Zone Offroad for this affordable yet high quality system and have no regrets!

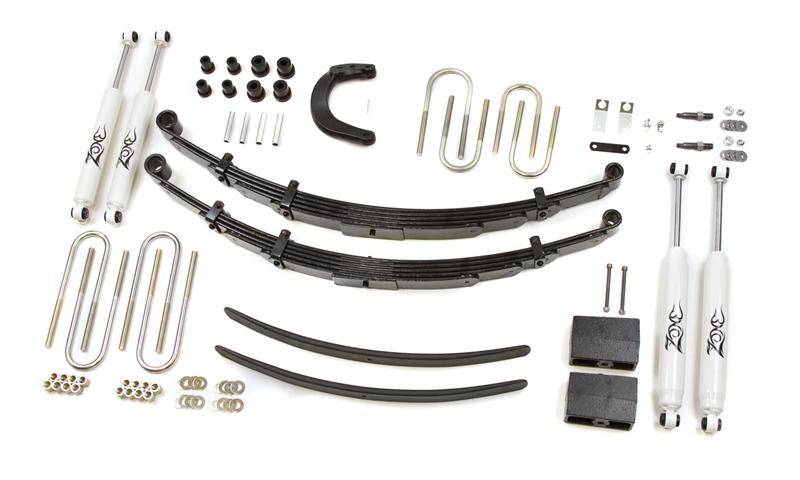

FEATURES:
6" Front Leaf Springs
4" Rear Lift Blocks
Rear Add-A-Leaf
4" Steering Arm
Front and Rear Brake Line Relocation Brackets
Zinc Plated U-Bolts with High Nuts and Washers
Optional Front Sway Bar Shackle Links
IMPORTANT NOTES:
*Some models may require the transfer case drop kit, C5001, listed in the accessories to alleviate driveshaft vibration.
*The front driveshaft may need to be clearanced at the double cardan joint to prevent binding at full droop on some models.
*The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.
*Some models came equipped from the factory with a dual front shock setup, with the second set of shocks commonly being referred to as "Auxiliary" shocks. If you prefer to retain the Auxiliary shocks, you must order the optional Auxiliary shocks offered under the kit options/add-ons. Optional Auxiliary shocks are also available in both our hydro and nitro shocks.
FITMENT:
73-76 Chevy/GMC Blazer/Jimmy 3/4 Ton, 4wd Gas
73-76 Chevy, 4wd Gas
73-76 Chevy, 4wd Gas
QUICK SPECS
Front Lift Height: 6"
Front Lift Method: Leaf Springs
Rear Lift Height: 5-6"
Rear Lift Method: Add-A-Leafs & Block Kit
Install Time Hrs: 4
Difficulty Level 1-5: 3
Wheel Size: 15x8
Back Spacing: 3.5"
Max Tire Size: 37x12.50
Details
- C23
- C23
- Zone Offroad Products
- New
Categories
Shipping Information
- Item Requires Shipping
- 188.0 lbs.
