6" Lift Kit, 1/2 Ton, 77-87 Blazer

(0) Reviews: Write first review
C19
6" Lift Kit, 1/2 Ton, 77-87 Blazer
Pricing: $627.23

Customize Your Item

- AUXILIARY FRONT SHOCKS -
 * required
- DRIVELINE ADJUSTMENT -
- SHOCK BOOTS -
- SHOCKS -
 * required
- STEERING UPGRADES -
- SWAY BAR LINKS -
Qty:

Description

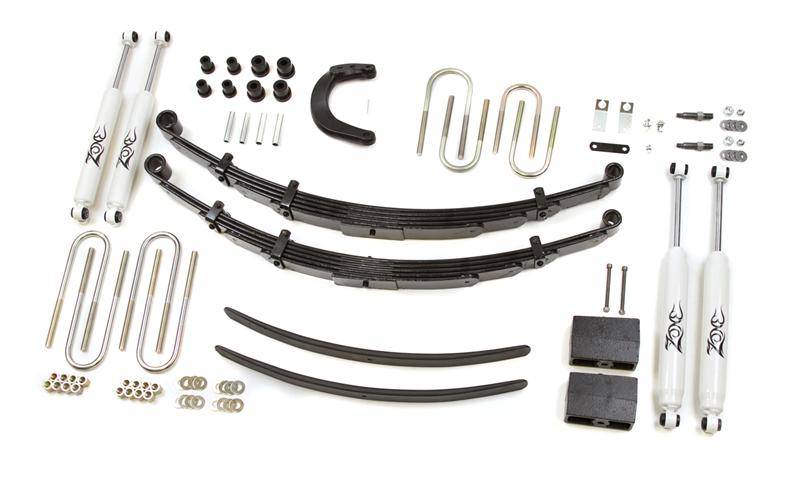

6" Lift Kit, 1/2 Ton, 77-87 Blazer.  This system comes complete with a 4" steering arm to yield the factory drag link angle, front and rear brake line relocation brackets, and front and rear yellow zinc plated u-bolts.  The front is lifted with 6" leaf springs that utilize a 5-leaf design, anti-friction pads, and center leaf spacer plates.  The rear is lifted with a 4" block and an add-a-leaf.  If your truck came with a front sway bar, check out the accessories for a unique shackle sway bar link design that fits lifts from 2-6".

FEATURES:
6" Front Leaf Springs
4" Rear Lift Blocks
Rear Add-A-Leaf
4" Steering Arm
Front and Rear Brake Line Relocation Brackets
Zinc Plated U-Bolts with High Nuts and Washers
Optional Front Sway Bar Shackle Links

IMPORTANT NOTES:
*Some models may require the transfer case drop kit, C5001, listed in the accessories to alleviate driveshaft vibration.

*The front driveshaft may need to be clearanced at the double cardan joint to prevent binding at full droop on some models.

*The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models.

*Some models came equipped from the factory with a dual front shock setup, with the second set of shocks commonly being referred to as "Auxiliary" shocks.  If you prefer to retain the Auxiliary shocks, you must order the optional Auxiliary shocks offered under the kit options/add-ons.  Optional Auxiliary shocks are also available in both our hydro and nitro shocks.

FITMENT:
77-87 Chevy/GMC Blazer/Jimmy, 4wd Gas
77-87 Chevy, 4wd Gas
77-87 Chevy, 4wd Gas

QUICK SPECS
Front Lift Height: 6"
Front Lift Method: Leaf Springs

Rear Lift Height: 5-6"
Rear Lift Method: Add-A-Leafs & Block Kit
Install Time Hrs: 4
Difficulty Level 1-5: 3

Wheel Size: 15x8
Back Spacing: 3.5"
Max Tire Size: 37x12.50

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
